Tool Maintenance

工具保養

B-Sharp

B-Sharp

Sharpening with B-Sharp

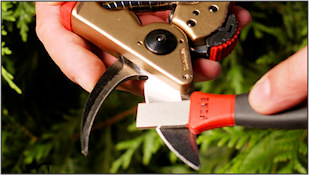

  • Hold open tool firmly in one hand (see photo).
  • Take B-Sharp and set it on the bevel of the blade (on the outside face of the blade).
  • Sharpen the cutting edge by pulling B-Sharp parallel along the bevel of the blade (an angle of approx. 23°).
  • Repeat until a small burr has formed at the tip of the cutting edge.
  • Turn over tool and set B-Sharp flat against the inside face of the blade. Swipe once to break the burr. Your tool is now sharp.

All maintenance should be performed only by a responsible person, not under the influence of alcohol or drugs. Keep out of reach of children!

削尖工具

  • 穩固的將工具拿在手中並撐開(依圖示)
  • 將B-Sharp放置在刀片的斜面(放置在刀片的外側)
  • B-Sharp沿著刀片的斜面, 水平的來回移動來將刀刃削尖(角度大約23度)
  • 重複此動作直到刀刃的尖端出現毛邊
  • 工具翻面, 將B-Sharp平放在刀片的內側, 將毛邊敲落, 現在你的工具又變得銳利了

所有的保養動作需由專業人員執行, 請勿在有 喝酒或使用藥物的情況下進行保養. 請放置在 孩童無法取得的地方

B-Oil in Daily Maintenance After Use:

Clean blades with a soft cloth. To dissolve any sap, use sap remover. Apply to blades, allow to penetrate, then wipe off (repeating as necessary). Apply thin coat of B-Oil to tool blades after primary cleaning.

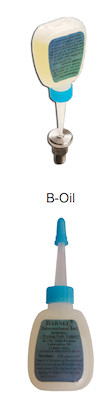

Every second day, gently depress ball bearing of Center Oiler Bolt (see photo) and load oil into the reservoir by squeezing the bottle. Apply B-Oil to the inside of the barrel spring. Work the action of the hand pruner to spread the oil.

Barnel B-Oil is a food grade, biodegradable, non-toxic, non-flammable, non-hazardous oil based lubricant, safe to use around products.

Off Season Storage:

Apply B-Oil more liberally to the blades to avoid oxidization. Assure the Center Oiler Bolt reservoir is full. Work the action of the tool to spread B-Oil and repeat application of more B-Oil until the blades are saturated. Store in a dry place (i.e. in a box, case) or on a wall.

B-Oil

每日使用後的保養 B-oil:

使用柔軟布料來清潔刀片. 請使用B-oil來去除刀片上的樹汁. 將 B-oil塗在刀片上, 讓去除劑滲入樹汁,之後再將去除劑擦拭乾淨 (必要的話可重複此動作) 在清理完畢之後在刀片上塗上一層薄薄 的B-oil. 第二天時, 輕壓工具中心的螺栓將B-oil注入儲油槽(中心螺栓 的細節, 請參考第二頁), 將修枝剪做修剪動作使B-oil均勻進入 彈1簧中. 百齡B-oil是食品級, 生物可分解, 無毒, 不易燃和非危險性的潤滑劑 , 可安心的 使用在工具上

園藝工具保存方式:

充足的將B-oil使用在工具上來避免氧化. 確保工具中心的儲油槽是滿的. 拿起 修枝剪做修剪動作讓B-oil均勻分布, 重複此動作直到B-oil均勻的分佈在工具上. 將工具放置在乾燥處(例如: 箱子,盒子)或者放置在牆上

Model
TPR
Head
Length
Weight
Description 说明
B-Sharp
1" (25mm)
6" (15cm)
1.1oz (30g)
Diamond Sharpener
鑽石磨具
B-Oil
1 1/2" (40mm)
4 1/4" (11cm)
0.7oz (20g)
Non-Toxic Tool Lubricant
無毒工具潤滑劑
